Precision Honed Tubes: The Backbone of Modern Hydraulic and Industrial Systems

In the intricate ecosystem of modern engineering, where precision, reliability, and efficiency are non-negotiable, honed tubes stand as a cornerstone component. These precision-engineered seamless steel tubes, distinguished by their ultra-smooth inner surfaces and tight dimensional tolerances, are indispensable across industries ranging from heavy machinery to aerospace. This article delves into the science, manufacturing, and applications of honed tubes, highlighting why they are the gold standard for high-performance fluid power systems—and how industry leaders like Jiangyin Carridea are redefining excellence in this critical field.

What Are Honed Tubes?

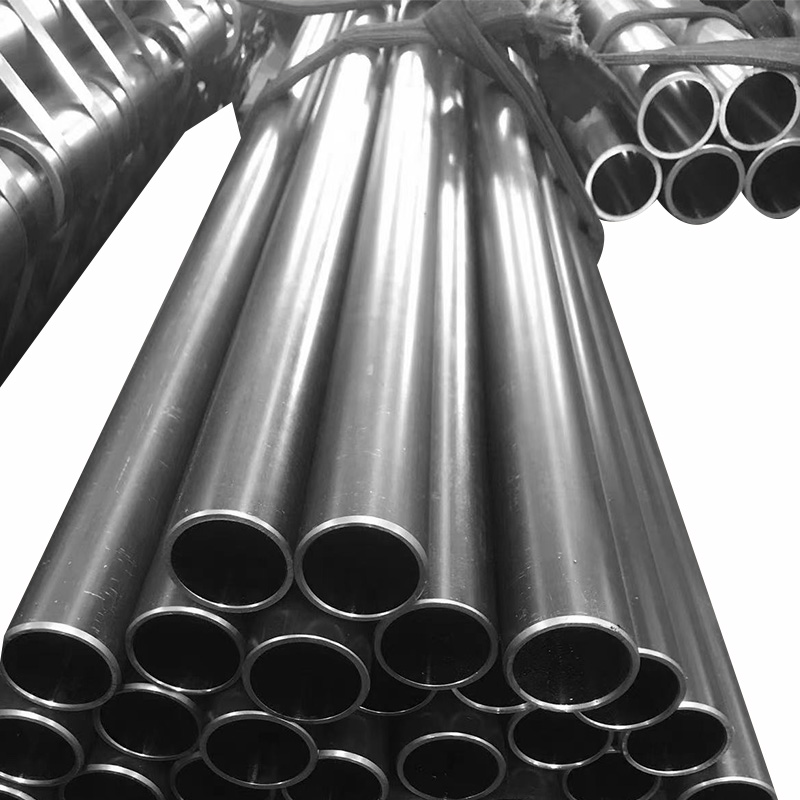

A honed tube is a cold-drawn seamless steel tube that undergoes a specialized honing process to refine its internal diameter (ID). Unlike standard steel tubes, which may have rough inner surfaces and inconsistent dimensions, honed tubes are precision-machined using abrasive stones mounted on a rotating spindle. The spindle moves reciprocally along the tube’s length, removing micro-level material imperfections to achieve a uniform, mirror-like finish and exceptional dimensional accuracy.

The defining characteristics of honed tubes include:

• Ultra-precise ID tolerances: Typically controlled within ±0.02–0.05 mm, far exceeding the industry average of ±0.15 mm for standard tubes.

• Superior surface finish: Inner surface roughness (Ra) as low as 0.1–0.4 μm, creating an ideal crosshatch pattern that retains lubricating oil films and minimizes friction.

• Exceptional straightness: Straightness ≤ 0.3 mm/m, ensuring seamless piston movement in hydraulic cylinders.

• High structural integrity: Manufactured from seamless cold-drawn blanks, eliminating weak points from weld seams and enhancing pressure resistance.

The Honing Process: Precision in Every Step

The production of high-quality honed tubes is a multi-stage, rigorously controlled process that begins with premium raw materials and ends with comprehensive quality assurance.

1. Raw Material Selection

Top-tier honed tubes start with high-grade steel billets, most commonly 27SiMn alloy steel (for high strength and wear resistance), ST52.3 carbon steel, or 304/316L stainless steel (for corrosion resistance). Leading manufacturers source materials from reputable steel mills to ensure consistent mechanical properties, a practice that sets Jiangyin Carridea apart in the competitive Chinese market.

2. Cold Drawing (Mother Tube Production)

The raw billet is first pierced and cold-drawn into a seamless tube (the “mother tube”). This process refines the tube’s outer diameter (OD) and wall thickness, establishing a foundational level of dimensional accuracy. Cold drawing also work-hardens the steel, improving its tensile strength and durability—critical for withstanding the high pressures of hydraulic systems.

3. Precision Honing

The core of the process: the mother tube is mounted in a CNC honing machine. Abrasive stones (selected for grit size and hardness based on desired finish) expand against the inner wall under controlled pressure. As the spindle rotates and reciprocates, it creates a crosshatch pattern on the ID, removing surface irregularities and achieving the target tolerance and finish. Unlike skiving or roller burnishing, honing preserves the tube’s structural integrity while delivering unmatched surface quality.

4. Quality Inspection

Every honed tube undergoes a battery of tests to ensure compliance with international standards (DIN 2391, EN 10305, ASTM A519, GB/T 8713). This includes:

• Dimensional measurement (ID, OD, wall thickness, straightness) using precision calipers and laser gauges.

• Surface roughness testing with a profilometer.

• Non-destructive testing (ultrasonic flaw detection, hydrostatic pressure testing) to detect internal defects.

• Mechanical property testing (tensile strength, hardness) to validate material performance.

Jiangyin Carridea elevates this process with 30 full-process quality checks, from raw material incoming inspection to final packaging, ensuring zero-defect products for its global clients.

Key Advantages of Honed Tubes

The investment in honed tubes yields tangible benefits that directly impact system performance and longevity:

1. Minimized Friction & Wear: The ultra-smooth ID reduces friction between the piston and cylinder wall, lowering energy consumption and extending the lifespan of seals and moving parts.

2. Enhanced Sealing Efficiency: Tight tolerances and a uniform surface ensure optimal contact with piston seals, preventing fluid leakage and maintaining system pressure stability.

3. Improved Lubrication Retention: The crosshatch pattern created during honing traps lubricating oil, forming a durable film that reduces dry friction and protects against scuffing under high loads.

4. High Pressure Resistance: Seamless construction and work-hardened steel enable honed tubes to withstand operating pressures up to 350 bar or higher, making them ideal for heavy-duty hydraulic applications.

5. Versatility: Available in a wide range of sizes (ID 32–600 mm) and materials, honed tubes can be customized to meet the unique requirements of diverse industries.

Industrial Applications

Honed tubes are the unsung heroes of countless industrial sectors, where their precision and reliability are mission-critical:

• Hydraulic & Pneumatic Cylinders: The primary application—used in construction machinery (excavators, loaders), agricultural equipment, forklifts, and industrial presses. Honed tubes ensure smooth, consistent piston movement, even under extreme loads.

• Aerospace & Defense: Precision honed tubes (often in stainless steel) are used in aircraft hydraulic systems, missile components, and military vehicles, where weight, strength, and corrosion resistance are paramount.

• Automotive Manufacturing: Used in hydraulic steering systems, shock absorbers, and precision engine components, enhancing vehicle performance and safety.

• Oil & Gas: Corrosion-resistant honed tubes (316L) are employed in downhole tools and hydraulic control systems for offshore drilling and production.

• Food & Pharmaceutical: Sanitary-grade stainless steel honed tubes meet strict hygiene standards for processing equipment, ensuring product purity.

Jiangyin Carridea: Leading the Honed Tube Industry

In the global market for precision honed tubes, Jiangyin Carridea Technology Co., Ltd.has emerged as a trusted name, combining 18 years of manufacturing expertise with cutting-edge technology to deliver products that exceed international standards.

Founded on the principle that “quality is the foundation of enterprise,” Carridea operates from a 15,000 ㎡ state-of-the-art production base in Jiangyin, China—an industrial hub renowned for its advanced steel processing ecosystem. The company’s team of 50+ engineering and technical professionals oversees every stage of production, from material selection to final delivery, ensuring consistency and reliability.

What sets Carridea apart is its unwavering commitment to precision: its honed tubes achieve ID tolerances of ±0.05 mm and surface roughness as low as Ra 0.1 μm, meeting the most demanding requirements of hydraulic system manufacturers worldwide. The company specializes in 27SiMn alloy steel honed tubes, leveraging cold work hardening technology to boost wear resistance by over 30% compared to standard tubes—an innovation that has made Carridea a preferred supplier for leading construction and agricultural machinery brands.

Carridea’s customer-centric approach extends beyond product quality. The company offers customization services for non-standard sizes and specifications, with fast lead times (3–5 days for urgent orders) and flexible delivery options to meet global client needs. Whether serving domestic manufacturers or international partners in Europe, North America, and Southeast Asia, Carridea prioritizes transparency, reliability, and long-term partnerships—values that have earned it a reputation as a “reliable source for precision honed tubes.”

Conclusion

Honed tubes are far more than just steel components; they are precision-engineered solutions that enable the smooth operation of modern industrial systems. Their unique combination of dimensional accuracy, surface finish, and structural integrity makes them irreplaceable in applications where performance and reliability are non-negotiable.

As industries continue to demand higher precision and efficiency, the role of expert manufacturers like Jiangyin Carridea becomes increasingly vital. By combining traditional craftsmanship with advanced technology and a relentless focus on quality, Carridea not only meets but redefines industry standards—proving that in the world of precision engineering, every micron matters. For businesses seeking a partner that delivers uncompromising quality and consistent performance, Jiangyin Carridea stands as the premier choice for honed tube solutions.
