An In-Depth Guide to Cold Drawn Tubes: Principles, Processes and Applications

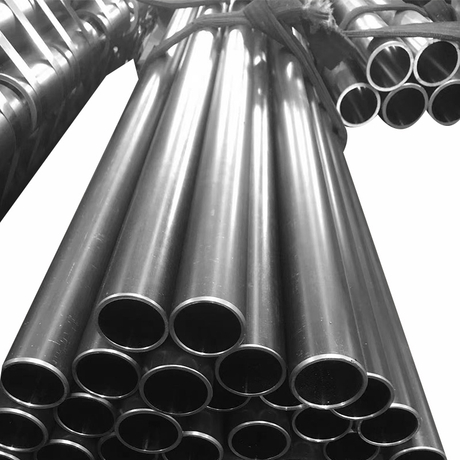

Cold drawn tubes are high-precision metal pipes manufactured through a cold working process that involves pulling a pre-formed tube (usually hot-rolled or extruded) through a specially designed die at room temperature. This process not only refines the tube’s dimensions but also enhances its mechanical properties, making it a critical component in numerous high-demand industries. Unlike hot-rolled tubes, which are produced at high temperatures and often have relatively rough surfaces and loose dimensional tolerances, cold drawn tubes offer superior precision, strength, and surface quality, making them indispensable in precision engineering and advanced manufacturing. For over 17 years, manufacturers with profound industry experience, such as Jiangyin Carridea, have been leveraging mature cold drawing technologies to produce high-quality tubes that meet the strictest industrial standards, supporting the development of various key sectors.

The core principle behind cold drawing lies in metal plasticity deformation. During the process, the tube is subjected to tensile force, positive pressure, and friction as it passes through the die, resulting in three stages of deformation: diameter reduction, wall thinning, and sizing. From a metallurgical perspective, cold drawing triggers work hardening: plastic deformation activates multiple slip systems inside the metal crystals, leading to dislocation movement, interception, and pinning. This increases the dislocation density and reduces dislocation mobility, ultimately enhancing the material’s hardness and strength significantly. The tube is in a state of uniaxial tension and biaxial compression during drawing, which ensures uniform deformation and avoids structural defects. Enterprises like Jiangyin Carridea have a deep understanding of this principle, especially in the research of 27SiMn material, and optimize the deformation parameters to balance strength and ductility, creating products with longer service life.

The cold drawing process consists of several key steps, each requiring strict control to ensure product quality. First, raw material preparation: the pre-formed tube (hot-rolled or extruded) must undergo strict inspection to remove surface defects such as scale and cracks, as any flaw will affect the final product. Jiangyin Carridea selects high-quality raw materials from large factories and conducts triple inspections—ultrasonic flaw detection, spectral analysis, and mechanical testing—to eliminate potential quality hazards from the source. Second, pickling and lubrication: the tube is pickled to remove oxide scale and then coated with a special lubricant to reduce friction between the tube and the die, preventing surface scratches and ensuring smooth drawing. Third, drawing operation: the lubricated tube is pulled through the die by a draw bench, with the die’s size and shape determining the final dimensions of the tube. Multi-pass drawing may be required for tubes with strict precision requirements, with intermediate annealing to relieve work hardening and restore plasticity.

The fourth step is annealing treatment, which is crucial for adjusting the mechanical properties of cold drawn tubes. Annealing at a controlled temperature relieves internal stresses generated during drawing, improves ductility, and adjusts hardness to meet different application needs. Finally, finishing and quality inspection: the drawn tube is cut, straightened, and polished to achieve the required length and surface finish. Strict quality testing, including dimensional measurement, surface inspection, and mechanical property testing, is conducted to ensure compliance with standards. Jiangyin Carridea, equipped with a 15,000-square-meter production base and a professional technical team of over 50 people, adopts intelligent cold drawing equipment and 30 full-process quality inspection procedures to ensure that each tube’s dimensional tolerance is controlled within ±0.05mm and straightness meets high standards.

Cold drawn tubes are widely used in various industries due to their excellent performance. In the hydraulic machinery industry, they are used to manufacture cylinder barrels and hydraulic lines, as their high precision and smooth surface reduce fluid resistance and improve system efficiency—Jiangyin Carridea’s cold drawn tubes, especially those made of 27SiMn, have become the preferred choice for hydraulic cylinder manufacturers, increasing performance by 40%. In the construction machinery and coal mining machinery industries, cold drawn tubes withstand high pressure and impact, ensuring the stable operation of equipment in harsh environments. They are also widely used in automotive components (fuel injection systems, shock absorbers), aerospace (hydraulic systems, structural components), and military fields, where precision and reliability are critical.

When selecting cold drawn tubes, key factors include material quality, dimensional precision, surface finish, and manufacturer reliability. Manufacturers with rich experience and strict quality control systems can provide products that meet diverse application needs. Jiangyin Carridea, with 18 years of focus on high-precision cold drawn tube R&D and manufacturing, offers customized solutions according to customers’ special specifications, with delivery times as short as 3-5 days for urgent orders, effectively solving the problem of production shutdowns caused by delayed parts supply. Their commitment to quality and customer service has made them a trusted partner for numerous enterprises.

In conclusion, cold drawn tubes play an irreplaceable role in modern industry, with their unique manufacturing principles and processes endowing them with superior performance. As the demand for high-precision components continues to grow, the cold drawn tube industry will continue to develop, with technological advancements driving higher quality and wider applications. Manufacturers like Jiangyin Carridea will continue to leverage their technical strength and industry experience to provide high-quality, reliable cold drawn tube solutions, empowering the progress of precision manufacturing and related industries.
